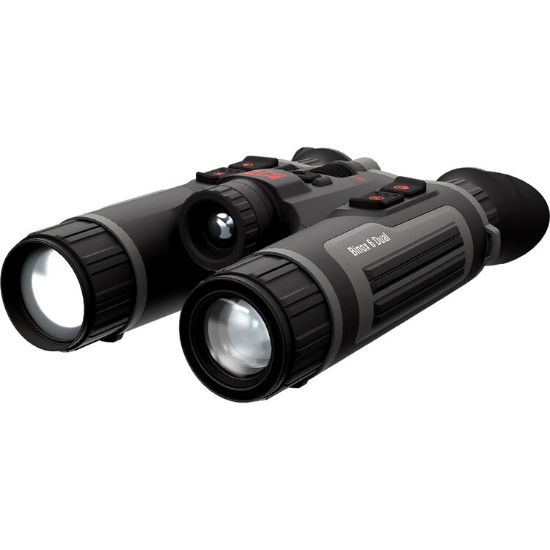

ATN Binox 6 Dual 640x512 3-24x BINOCULARS DAY, NIGHT & THERMAL

ATN MULTISPECTRAL BINOS 4-in-1 DAY, NIGHT, THERMAL & TWILIGHT VISION With LRF

The ATN Binox-6 Dual 640 is a professional grade, multispectral binocular engineered for those who demand uninterrupted situational awareness in any environment. Combining ATN’s 6th Generation thermal engine with a 4K Ultra HD CMOS sensor, this 4-in-1 system delivers exceptional clarity across Day, Night, Thermal, and Twilight modes. Whether you are glassing ridgelines at dawn, tracking hogs through dense brush after dark, or guiding search and rescue teams through fog and smoke, the Binox 6 Dual adapts instantly to keep you prepared.

At its core is an ultra sensitive 640x512 (12μm VOx) thermal sensor with an impressive ≤15mK NETD rating, offering superior thermal definition, long range detection (up to 3100m), and the ability to cut through obscurants like fog, smoke, or foliage. This is paired with a large 1.8" CMOS sensor delivering true to life 4K colour (3840x2160) during the day. When darkness falls, Night Vision Mode engages, and the onboard Smart IR illuminator provides clear visibility out to 400 metres. A dedicated Twilight Mode bridges the gap at dawn and dusk, keeping contrast and colour intact when light is low but not gone.

The viewing experience is immersive and fatigue free, featuring a 0.49" OLED display (1920x1080) with a smooth 50Hz refresh rate, 3-24x magnification (with up to 8x digital zoom), an adjustable digital focus ring, and 15mm of eye relief.

Multispectral Intelligence for Any Mission

The Binox-6 Dual is equipped with ATN's Smart Precision Suite, a collection of advanced tools that turn raw data into actionable intelligence:

• SharpIR® AI-Image Enhancement: Proprietary AI algorithms dynamically sharpen edge definition and target contrast, turning indistinct heat signatures into defined shapes for faster, smarter decisions.

• Dual View Switching: Display thermal alongside a daytime, night, or twilight view on the same screen, allowing you to track heat signatures while maintaining full visual context of the terrain.

• Integrated Laser Rangefinder: A built in 1000 metre laser rangefinder (905nm Class 1, eye-safe) delivers instant distance data with ±1 metre accuracy, providing confidence for ethical shot placement and precise navigation.

• Hot Point Tracking: Automatically highlights the hottest object in view, making it simple to spot game, locate people, or identify equipment hotspots.

• Wide Dynamic Range (WDR): Balances the image to reveal detail in both hot and cold areas, ensuring nothing important is lost.

• DeFog Mode: Enhances contrast and sharpness automatically when fog, mist, or thermal bloom threatens to reduce visibility.

• 6 Colour Palettes: Choose from White Hot, Black Hot, Iron Red, Alarm, Green Hot, or Sepia to optimise contrast for your specific environment and reduce eye fatigue during extended use.

Key Features

• 4-in-1 vision modes: Day, Night, Thermal, and Twilight

• 12μm VOx 640x512 thermal sensor with ≤15mK NETD sensitivity

• 1.8" 4K Ultra HD CMOS sensor (3840x2160) for daylight and twilight viewing

• 0.49" OLED display (1920x1080) with 50 Hz refresh rate

• 3-24x magnification with 1x, 2x, 4x, 8x digital zoom

• 1000 metre laser rangefinder with ±1m accuracy (905nm Class 1, eye-safe)

• SharpIR® AI image enhancement technology

• Dual View Switching and Picture-in-Picture (PIP)

• Hot Point Tracking, Wide Dynamic Range, and DeFog Mode

• Smart IR illuminator (850nm / 940nm optional) with effective night range of 400m

• 11 thermal colour palettes (6 listed, plus variations)

• 64GB internal storage for 4K day video and 1080p thermal recording

• Built in Wi-Fi for streaming to ATN Connect 6 app (iOS & Android)

• Built in GPS, compass, and 3-axis gyroscope/accelerometer

• Digital focus ring for precise adjustment

• Interpupillary adjustment (60–74mm) and diopter adjustment (-5 to +5)

• Magnesium alloy housing, IP67 waterproof, impact and dust resistant

• Powered by 2 x 18650 replaceable batteries (~8 hour runtime) + USB-C external power support

• Standard tripod mount

• Operating temperature: -30°C to 55°C (-22°F to 131°F)

Specifications

• Thermal Sensor: 640x512, 12μm VOx Uncooled FPA, ≤15mK NETD

• Thermal Lens: 35mm Germanium (Ge), F/1.0

• Thermal Field of View: 12.52° x 9.41°

• Detection Range: 3100 metres

• Day/Night Sensor: 1.8" CMOS, 3840x2160 (4K UHD)

• Day Lens: 55mm, F/2.0

• Day Lens Field of View: 8.0° x 4.5°

• Display: 0.49" OLED, 1920x1080

• Magnification: 3-24x (digital zoom up to 8x)

• Eye Relief: 15 mm

• Exit Pupil: 20 mm

• Focus: Manual, front lens adjustment (digital focus ring)

• Integrated LRF: 1000m range, ±1m accuracy, 905nm Class 1 eye-safe

• IR Illuminator: Yes (850nm / 940nm optional), effective range 400m

• Storage: 64 GB internal

• Video Recording: 4K UHD (day), 1080p (thermal)

• Wireless Connectivity: Built-in Wi-Fi hotspot

• Sensors: GPS, Compass, 3-axis Gyroscope / Accelerometer

• Battery Type: 2 x 18650 rechargeable (replaceable)

• Battery Life: Approx. 8 hours

• External Power: USB Type-C (5VDC / 2A)

• Material: Magnesium Alloy

• Weight: 730 g (1.61 lbs)

• Dimensions (LxWxH): 210 x 184.5 x 55 mm (8.27 x 7.26 x 2.17 in)

• Waterproof Rating: IP67

• Operating Temperature: -30°C to 55°C (-22°F to 131°F)

What's Included

• ATN Binox 6 Dual 640x512 Thermal Binoculars

• 4 x 18650 Rechargeable Batteries

• Battery Charger

• Body Strap

• Portable Bag

• Lens Tissue

• USB Cable

• Manual
