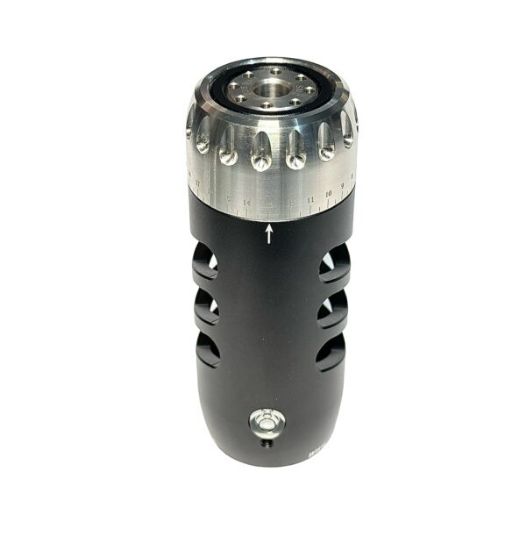

Eagle Vision All In One Muzzle Brake 1/2 UNF x 20

Eagle Vision Air Stripper and Harmonic Barrel Tuner

Main Body (MZHT-50B)

• Length: 90.3mm

• Diameter: 35mm

• Weight: 145 grams

• End Thread (to barrel): M23 x 1 (requires the 1/2” UNF adaptor below)

• Front Threads: M15 x 0.6 (for caliber adaptors)

End Adaptor (for 1/2” UNF x 20)

• Part Code: MBA-1/2 UNF X 20

• Length: 21mm

• Outside Diameter: 29mm

• Weight: 17 grams

• Thread: M23 x 1 (connects to main body) → 1/2” UNF x 20 (connects to barrel)

Caliber Adaptors (included set: .177, .22, .25, .30)

• Length: 15mm

• Front Outside Diameter: 19mm

• Thread: M15 x 0.6

• Weights:

  • .177 cal: 15g

  • .22 cal: 14g

  • .25 cal: 13g

  • .30 cal: 12g

What’s Included (for 1/2” UNF setup)

• 1x All-in-one main body

• 1x End adaptor (1/2” UNF x 20)

• 4x Caliber adaptors (.177, .22, .25, .30)

• 2x O-rings

• 6x Grub screws

• 2x Allen keys (one for main body, one for adaptor)

• 8x Stainless steel tool bars (for caliber adaptors)

• 2x Stainless steel tool bars (for end adaptor)

• 1x Waterproof storage case

Key Features

• No moving parts

• O ring secured to limit vibration and prevent pellet clipping

• 5 Axis CNC tolerance: ±0.05

• Caliber-specific front adaptor with 8 holes for tool insertion
