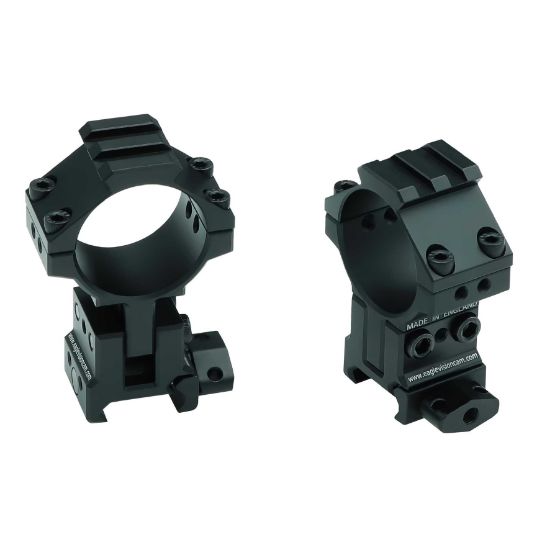

Infinity Elevation Adjustable Scope Mount 30mm Ring Picatinny IPS-30

Eagle Vision 30mm Scope Ring Mounts

The Infinity IPS-30 is a premium elevation adjustable 30mm scope mount system designed for shooters who need maximum flexibility, especially when using larger objective scopes or shooting long range with bullpup rifles.

Unlike fixed mounts, the Infinity allows you to quickly adjust the height of the rear ring along a guided path while keeping the front ring lower. This creates the ideal forward canting or “scope forward” setup many long range and bullpup shooters prefer. The mount can be locked securely in any position using two screws, giving you low profile or high profile configurations as needed.

Key Features

• Fully adjustable height from 68.25 mm to 77.75 mm (9.5 mm of elevation adjustment)
• Ideal for bullpups and long-range setups where extra clearance is required
• Keeps front mount low and rear mount raised for better long-range zeroing
• Prevents turret “self-running” on high-magnification scopes
• Robust 30mm rings with Picatinny base (22 mm)
• Includes spare screws and protective fabric ring

Specifications

• Ring Size: 30 mm
• Adjustable Height: 68.25 – 77.75 mm
• Profile Height: 23 mm
• Centre of ring to bottom of rail: 41 mm (closed) / 51.5 mm (open)
• Weight: 81 g per mount
• Material: High-strength aluminium alloy

Package Includes

• 2 × Infinity 30mm scope mounts
• 2 × Allen keys (different sizes)
• 5 × Spare screws
• 1 × Protection ring fabric
• 1 × Waterproof storage case

Torque Settings

• Ring screws: 15–20 inch-lbs (1.68–2.25 Nm)
• Adjustable side screws & Picatinny nuts: 53–71 inch-lbs (6–8 Nm)
