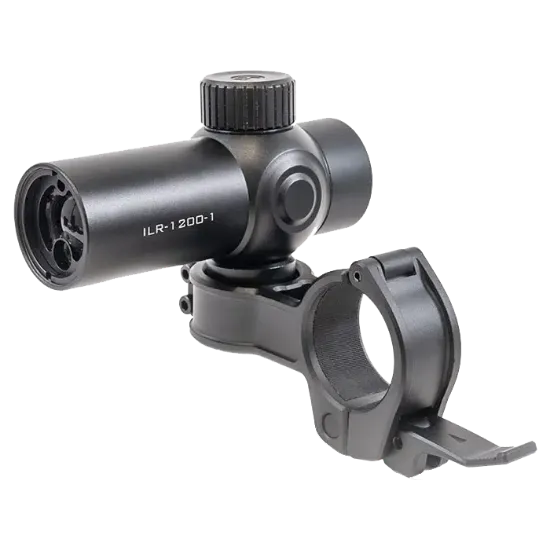

Infiray ILR 1200-1 Laser Range Finder

Infiray Laser Range Finder

The InfiRay ILR-1200-1 is a compact, wireless laser rangefinding module designed specifically for the BOLT V2 and BOLT SE series thermal rifle scopes. It eliminates the need for guesswork in range estimation, delivering precise distance data day or night and overlaying the measured yardage directly onto the connected scope's display.

The ILR-1200-1 connects seamlessly to compatible BOLT series thermal scopes via Bluetooth. Once paired, range measurements are transmitted wirelessly and displayed directly within the scope's viewing interface, allowing you to range targets without taking your eye off the optic. The module mounts securely to the scope using an intuitive 30mm Quick Detach (QD) clamp mount, ensuring repeatability and easy operation even when wearing gloves.

With a maximum detection range of 1,200 yards and an accuracy of ±1 yard out to that distance, the ILR-1200-1 provides reliable distance data for precision shooting at extended ranges. The infrared laser operates at a wavelength of 905nm and is rated Class 3R. Range performance depends on the target size, reflectivity, and environmental conditions.

Key Features

• Wireless Bluetooth integration with BOLT V2 and BOLT SE thermal rifle scopes

• 1,200 yard maximum detection range with ±1 yard accuracy

• Range data overlaid directly on the connected scope's display

• 30mm Quick Detach (QD) clamp mount for fast, secure attachment

• Lightweight 6061 aluminum housing with anodized finish

• IP67 rated weatherproof construction

• Powered by a single rechargeable 3.7V RCR123 battery

• Simple controls power button only; all other functions managed through the optic software

Specifications

• Model: ILR-1200-1

• Type: Wireless Bluetooth Laser Rangefinding Module

• Compatibility: InfiRay BOLT V2 and BOLT SE Series thermal rifle scopes

• Measuring Range: 10 – 1,200 metres / yards

• Accuracy: ±1 metre (10-100m); ±(1 + L × 0.25%) for 100-600m

• Laser Wavelength (IR): 905nm, Class 3R

• Laser Pointer: 650nm, Class 1 (red visible)

• Bluetooth: 5.0

• Battery: One replaceable CR123 / 3.7V, approximately 4 hours runtime

• Mounting Interface: 30mm Quick Release Ring Mount

• Housing Material: 6061 Aluminum Alloy

• Ingress Protection: IP67

• Weight: <170g (w/o battery); 6.5 oz (with battery)

• Dimensions: 95 × 92 × 85 mm (per manufacturer)
