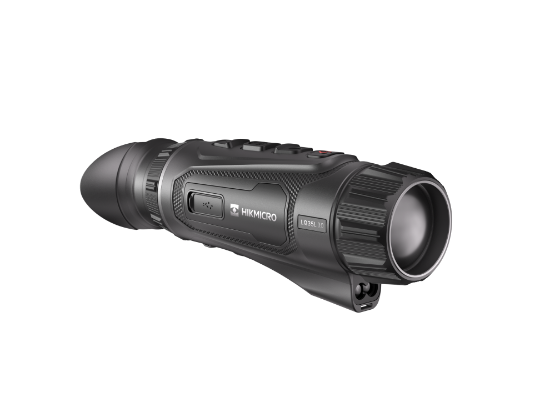

HIKMICRO Lynx LQ35L 3.0 35mm Thermal Monocular LRF

Thermal HM-LQ35L 3.0

The HIKMICRO Lynx 3.0 LQ35L is a high performance thermal monocular that combines a powerful 640×512 thermal sensor with an integrated 1000m Laser Range Finder (LRF). Featuring a 35mm F1.0 lens, it delivers exceptional image clarity, long detection range up to 1800 metres, and precise on screen distance measurement in one compact device.

Advanced AI Image Pro 3.0 and Zoom Pro processing, paired with shutterless HSIS technology, ensure smooth, silent, and highly detailed thermal imaging even in challenging weather and lighting conditions.

Key Specifications

• Sensor: 640 × 512 px, 12 µm, <15 mK NETD
• Lens: 35 mm F1.0
• Magnification: 1.9x – 15.2x
• Field of View: 12.5° × 7.5°
• Detection Range: Up to 1800 metres
• Laser Range Finder: 1000 m (905 nm)
• Refresh Rate: 50 Hz
• Technology: AI Image Pro 3.0, Zoom Pro, HSIS Shutterless
• Battery: Replaceable 18650 Li-ion (up to 4.5 hours at –20°C)
• Weight: 354.5 g
• Features: Integrated 1000m LRF, lightweight & robust design, smooth silent operation, excellent performance in adverse conditions
